Ferrari Mailing List: Re: Ferrari AC R12 York Compressor Info needed

[Peter Rychel (dino308gt4]

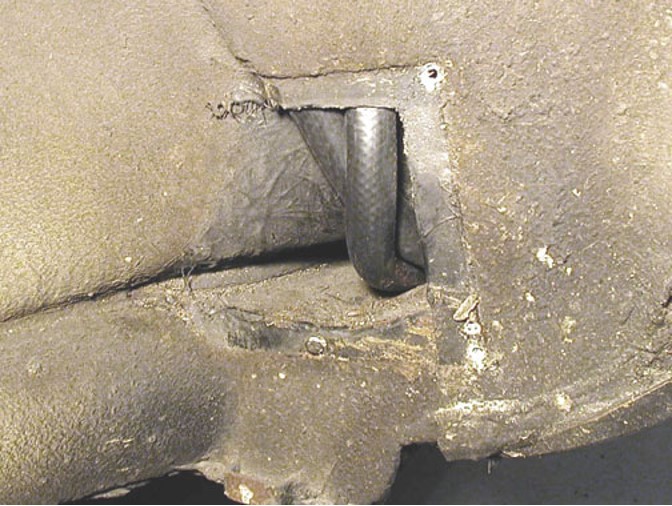

A 308 GTB/S will be slightly different to a GT4. I know at least with the heater hose on the driver’s side, it makes a really sharp bend at the wheel well and part of the chassis tubing is right there. You need to take the little access panel off and fish it around that corner. The A/C hoses are considerably stiffer so no question that access panel has to come off too.



Peter





Sent from Mail for Windows





From: Rick Moseley
Sent: January 12, 2022 7:28 AM
To: PeterGT4
Cc: The FerrariList
Subject: Re: [Ferrari] Ferrari AC R12 York Compressor Info needed



Matt,

No, it can be done with the hoses already made up with ends on. I did it.

Best to put the car on a 4 post lift so you can get it up off the ground and on sliding jack frames.  Pull the wheels off.  You have to pull all the existing hoses out then stage your pull-in.    A good LONG nylon rope, small diameter but STRONG.  You have to pull one hose front to back and the other gets pulled back to front... it makes sense when you see the hose ends



I tied the rope to the old hoses so when I pulled the old hoses out, I pulled the rope in.   Really helps to have two people.  But it can be done with the hose ends on.



While I was set up, I did everything on the other side as well.



I'll see if I can find the pics.



On Wednesday, January 12, 2022, 06:28:37 AM PST, Matt Boyd <ferrari308driver [at] gmail.com> wrote:





Clyde,



Did you do the install yourself? How did you replace the hose that goes from rear to front? I believe it goes through the door sill (like the heater hoses do on the driver side). The issue I seem to recall hearing about is that you cannot feed the new hose from front to rear with its fittings on, so the fittings would have to be put on after the new hose is fed through.



-matt

'85 euro 308 (with A/C that no longer works but would like it working again someday but even better than factory)



On Wed, Jan 12, 2022 at 9:19 AM Clarence Romero Jr. <clyderomerof4 [at] gmail.com> wrote:

Buy this kit

I have put one in

It works great

No issues



https://www.classicautoair.com/ferrari-308-air-conditioning/





     RF4-4EVR



Scars are Tattoos with better stories !



If you have no enemies, you have no character !



Clyde Romero





Confidentiality Notice:  This e-mail ( including attachments ) is covered by the Electronic Communications Privacy Act, 18 U. S. C., Sections 2510-2521, and is intended only for the persons or entity to which it is addressed, and may contain confidential or privileged material.  Any unauthorized review, use, disclosure, dissemination, copying, forwarding or distribution is prohibited.

This email transmission, and any documents, files or previous email messages attached to it, may contain confidential information that is priviledged.  If you are not the intended recipient, or a person responsible for delivering it to the intended recipient, you are hereby notified that any disclosure, copying, distribution or use of the information containes in or attached to this message is STRICTLY PROHIBITED.  If you have received this transmission in error, please immediately notify us by reply e-mail at Clyderomerof4 [at] gmail.com or  by telephone at (678 6419932)and destroy the original transmission and its attachments without reading them or saving them to disk.

On Jan 12, 2022, at 9:02 AM, Robert W. Garven Jr. <rgarven [at] gmail.com> wrote:

Peter,

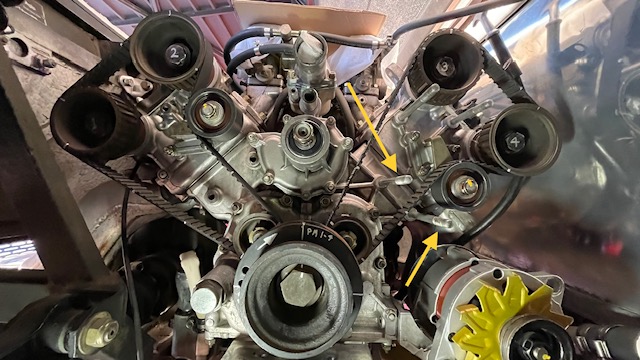

Did you remove one of these lower studs? The compressor clu hangs up badly on the farthest right one? Do you have all the studs in the compressor. I am thinking removing them may be harder as I had a real hard time trying to hold and align the compressor and thread the screws in even with a helper?



Do you bolt on the support before lifting the compressor in place on the tank. I do that to but only can get it laying on it side.



This has never been easy and really having a hard time.  I want to take out one of those studs but never had those out before and thinking what could happen if I try….



Rob



Sent from my iPhone

On Jan 11, 2022, at 9:31 PM, Peter Rychel <dino308gt4 [at] hotmail.com> wrote:



You are able to remove it from the top? I never could... I always took it out from the bottom (wheel well opening). The gas tank cut out was a convenient table it could rest on while I shimmied my hands underneath that clump of iron (without squishing my fingers in the process).



With this procedure, I never spilt a drop of oil as it remains more-or-less upright the whole time.



Just cut the fingers off a rubber glove and zip tie (zap strap for us Canucks) them on to the ports. That should keep the oil from leaking out (mostly).



Peter



Sent from Mail for Windows





From: Robert Garven
Sent: January 11, 2022 8:47 PM
To: PeterGT4
Cc: The FerrariList
Subject: [Ferrari] Ferrari AC R12 York Compressor Info needed







Friends,

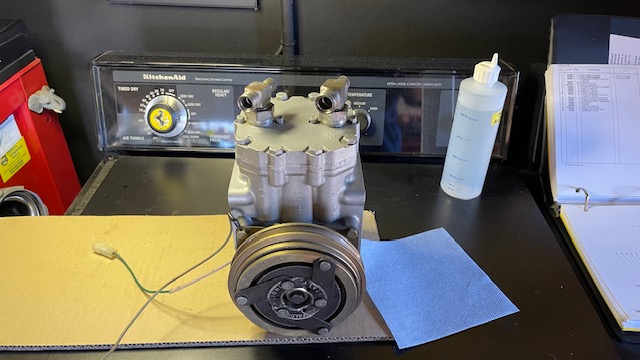

Trying to put my compressor back on and forgot that to make this removal/installation easier I lock-tighted the nuts on the studs and put the studs in from the top but to do that you have to put the back one in first before you attach the AC support, which I forgot to do, so I had to take everything apart again. And of course when the compressor was laying on its side it started leaking out all the oil I just put in it. Is there a screw on cap that you can put on both sides of the compressor outlets to keep oil from leaking out while installing??? Does anyone off hand know the thread sizes on this york?? The leaking oil is such a PITA I will try to find some caps if available!

I think I've told you before I never plan on using the air conditioner I just want it on for appearances. If so do I really need much oil in it??? On the GT4 this thing is really hard to get in or out. I've always taken it out from the top but this time I got out and in from the bottom, but boy there's no room to do this easily because it holds up on one of the studs which catches on the clutch assembly as it has to turn a little bit to get it in position and that starts pumping oil from the crankcase up to the outlets...

Rob
