Ferrari Mailing List: Repairin' the 308 (section 1)

[robert_h_bowser [at] juno.com (robert_h_bowser]

I'm in the middle of repairing the damage done by someone who repaired my

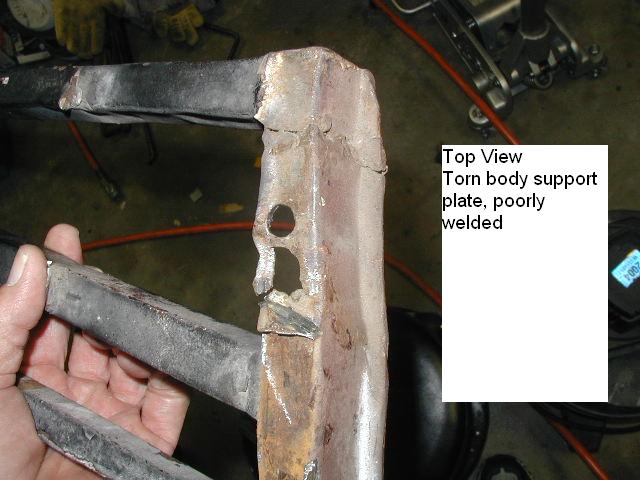

308...either Symbolic in San Diego, or a previous owner.  Attached pictures
show the removed support structure for the right front corner body panels.  We
had to pull the side of the frame where the support structure attached.  Couple
of pictures of the shitty weld job done on the tubes.  They also covered
everything with Bondo.  Welds.  Tubing.
Frame members.  Everything.  Splash shields covered with roofing cement!  Note
the Bondo on the fan support bracket!

Symbolic denies they did any of that when they repaired that corner four years
ago.  Claim they did not touch the support structure.  That corner got hit
pretty hard in the accident.  Sideswiped by a Jeep Grand Cherokee that tried to
push me into oncoming traffic.  I had to steer pretty hard to push the Jeep the
other way.  As shitty as the welds are, I find it hard to believe they would
have survived the accident.

Plan is to replace the entire structure with new tubing (3/4 and 5/8 box
section - 1/16 wall) and a new support plate (made from half an 8" length of
1.25 box section - 1/16 wall) for the body panels, welded to the existing box
section frame and small box section tubes that remain.

Remaining pictures to follow...

Bob
'78 308GTS
'01 Corvette Z06
