The complete linkage or just the bushing?

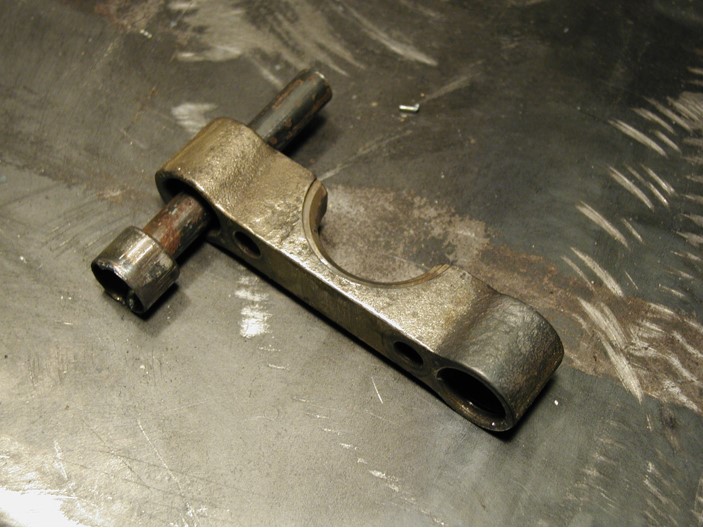

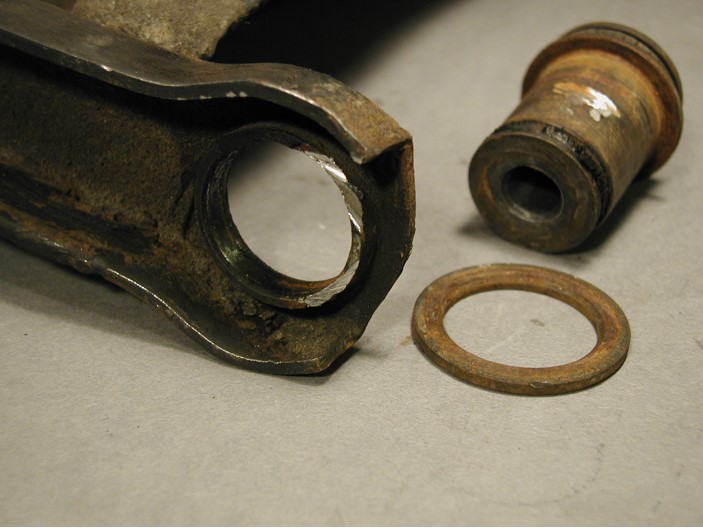

In an off-list message to Rob, I questioned why the bushing is missing in the first place. If anyone has tried to remove bushings like this, will probably agree with me, they are a surprisingly royal PIA to get out. When I did my suspension years ago, I fought with EVERY bushing. From the shock eyes, to the A-Arm bushings* to these links as well. Rob can also attest to the first gen steering rack mounts being nearly impossible to remove as well, where he sent them to me and I welded special drivers to the bushing shells just to get them out (just like how I had to do that with mine. They are installed in blind holes and can’t be simply pressed out from one side to the other)!



So with this, how come the bushing is missing in the first place? Forgot to be installed, or was the original bushing reused and the rubber finally broke down and fell out, leaving behind the shell and inner insert in place?



Peter



*= I replaced the A-Arm bushings as a whole with OE spec and not the short-cut way of burning out the rubber with a torch and replacing with poly inserts (So, cut off the tack welds on the outer shell, pressed out the old units and pressed in new ones and tack welded those on).











Sent from Mail for Windows 10





From: Clarence Romero Jr.
Sent: September 28, 2018 3:34 AM
To: PeterGT4
Cc: The FerrariList
Subject: Re: [Ferrari] 308 GT4 Front Roll Bar Service



That part is available at Ted Rutlands get a hold of Brian

Do both sides









     RF4-4EVR

Scars are Tattoos with better stories !



If you have no enemies, you have no character !



Clyde Romero





Confidentiality Notice:  This e-mail ( including attachments ) is covered by the Electronic Communications Privacy Act, 18 U. S. C., Sections 2510-2521, and is intended only for the persons or entity to which it is addressed, and may contain confidential or privileged material.  Any unauthorized review, use, disclosure, dissemination, copying, forwarding or distribution is prohibited.

This email transmission, and any documents, files or previous email messages attached to it, may contain confidential information that is priviledged.  If you are not the intended recipient, or a person responsible for delivering it to the intended recipient, you are hereby notified that any disclosure, copying, distribution or use of the information containes in or attached to this message is STRICTLY PROHIBITED.  If you have received this transmission in error, please immediately notify us by reply e-mail at Clyde.romerof4 [at] gmail.com or  by telephone at (678 6419932)and destroy the original transmission and its attachments without reading them or saving them to disk.

On Sep 28, 2018, at 12:11 AM, Robert Garven <rgarven [at] gmail.com> wrote:

Friends,



I took a break to play in my band but now back to working on the Dinos!  I was hearing a clunking sound coming from my right front suspension so put the car up and found the passenger side front roll bar bushing looks like it failed.



It has been a while since I worked on this so can anyone suggest a way to get the tension off the bar?  Its up on ramps. I think I will change both sides when I get it off! Not sure what caused this but glad it did not come all the way off and I caught it!!!



Looks like this is the bolt that hold the lower shock mount. Can I repair this with the wheel mounted? Looks like there is no other damage?



Thanks in advance for any and all suggestions!



Rob



Brian looks like I will be calling you!  HAAA





<IMG_6153.jpeg><IMG_6154.jpeg>
