[Matt Boyd (ferrari308driver]

I wish I'd seen your issue earlier, although sounds like you got it all figured out. Here's my story with the same part from when I had a Mondial QV back in the mid-1990s.

At the time, I worked at a small company that designed remote sensors, mainly for military applications. As such, prototype design and building meant we had a lady who was in charge of acquiring parts. Once I narrowed the problem to this component, I checked the price from Ferrari and honestly I think it was even more expensive than you just quoted. I then brought the part to our parts lady, we looked at it, figured out what it was, got the part number, and then called the parts supplier and asked for a sample saying it was a part we were considering using in production. So I got the part for free. Yay! :-) I just had to mount it back on the original heat sink.

The end.

-matt

'85 Euro 308 (and previously '83 Euro Mondial QV)

On Thu, May 19, 2022 at 7:01 AM BRITT ROTHMAN via Ferrari <ferrari [at] ferrarilist.com> wrote:

Kudos to the help from Anthony. I have received much help over the past 20 years from the list and it is what makes it great.

BR in Stockholm

Sent from my iPhone

On 19 May 2022, at 06:41, Peter Rychel <dino308gt4 [at] hotmail.com> wrote:



If some of you will remember, I posted having a problem with the vent fan switch not working with my Mondial. Anthony Bauco contacted me off-list and we discussed this at length. He was very generous with his suggestions and help and with that, it’s running perfectly now.

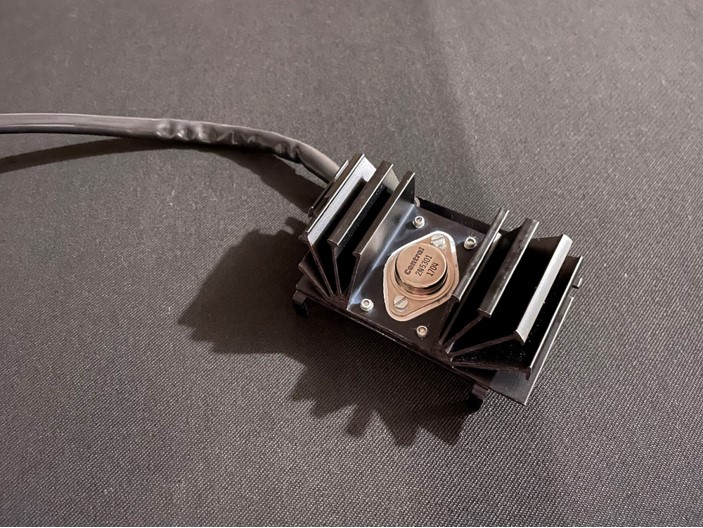

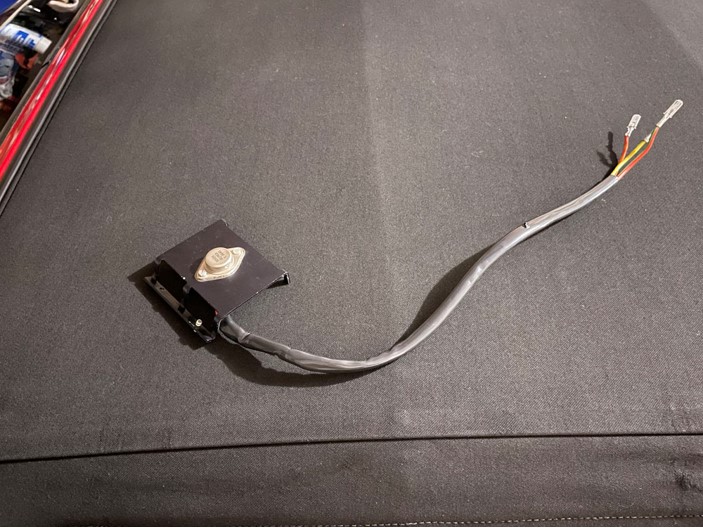

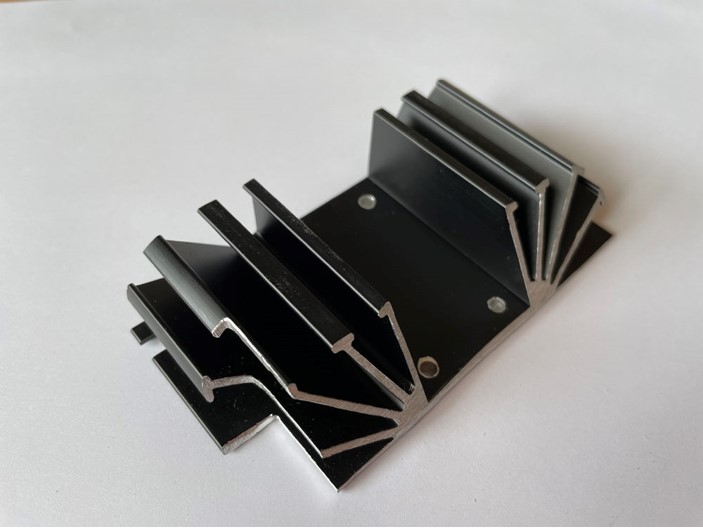

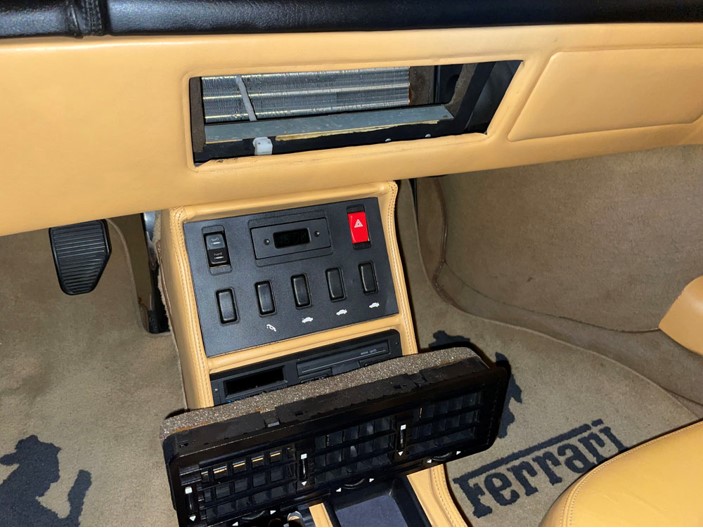

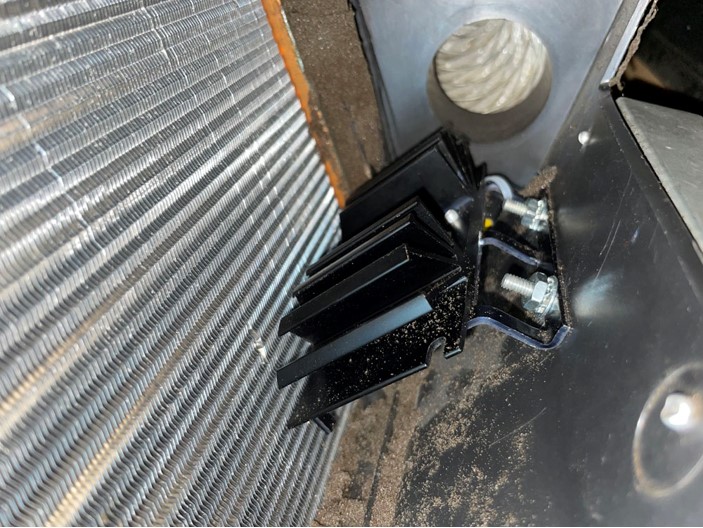

Turns out it was a burnt-out power transistor, the main one that regulates power directly to the fan motor. Ferrari did a pitiful job of installing it, not giving it a chance to dissipate the heat generated by the transistor. He suggested a suitable heat sink that I modified so it could fit in the HVAC box in it’s original location. The original - flawed – part is close to $300. I’m in it for about a tenth of that. In Canadian dollars.



That’s what makes this list great. Much appreciated!



Peter
