[Peter Rychel (dino308gt4]

If I remember correctly when I looked at the clock with my flashlight back then, I believe the first digit was an “8” (to display a “2” for the 24hr format. The Europeans tend to use that a lot).



I bypassed the dimmer switch in my 308 and it helped to brighten up the gauges and I’ll probably do the same with this car (eventually).



Ha, it’s just a dummy switch and can’t be pushed! It’s meant for cars that were equipped with the glove box option on top of the dashboard... That’s one of my biggest peeves with this car – that it has zero personal storage inside. There’s just a small cubby hole in the center console (where I keep my garage remote and radio remote, plus a spare Lighting cable for my phone. That’s all I can fit in it). A couple of pockets on the doors and the driver’s side sun visor.



Peter



Sent from Mail for Windows





From: Rick Moseley
Sent: January 23, 2022 10:18 PM
To: Peter Rychel
Cc: The FerrariList
Subject: Re: [Ferrari] Bingo...



Woohoo.   Nice find in the book and in the car.



They may tie the dimmer circuit to the driver circuit for the display.  Using a voltage divider so when you turn up the backlight it ramps up the display to keep it from washing out.  For longevity, I'd keep as dim as you can and still read it.



So is the fourth digit just a "1"?  If so, the clock IC is probably a VLSI.  Philips (Dutch) bought them out and dumped about 80% of their line.  They were only after a patent on some SMC formats.

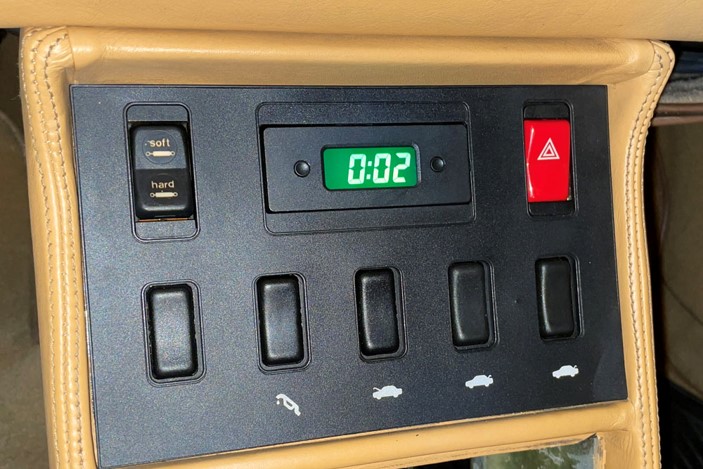

So what is the "secret" switch on the panel?  Or have you pushed it?



On Sunday, January 23, 2022, 09:28:26 PM PST, Peter Rychel <dino308gt4 [at] hotmail.com> wrote:





And just like that, it works.



I did look through the workshop manual and the wiring diagram was buried deep within it (thanks Cody!).



So the four wires were easy enough to trace. Black = ground, Green = switched 12V, Blue/Red = 12V hot all of the time and Pink = rheostat circuit. Checking them with my voltmeter showed proper conditions, power wise, except the Pink wire, which traces out to the dimmer switch. Plugging it in and powering it up and it works!



Funny, but when turning the dimmer switch, the clock display gets slightly brighter, so I don’t know what’s up with that. I’m not sure I want to tear this thing anymore apart, because it is a functioning clock now (what I wanted to begin with).



And the turn signal switch is repaired and functioning too.



Onwards...



Peter





Sent from Mail for Windows
