Now that I have rebuilt the suspension front and rear, things are much stiffer
now, and a problem I have had for a while is much worse.  Sounds like something
is broken in the frame.  Car rides fine, but if I hit a bump, there is a loud
sound like something banging around.  Been looking around for a while trying to
find the source.  Think I may have found a couple of candidates today.

I had a lady sideswipe me a couple of years ago on the right front corner.
Dented things up a bit.  I had it repaired at Symbolic here in San Diego.  They
did a pretty good job from a cosmetic standpoint, but I think they missed the

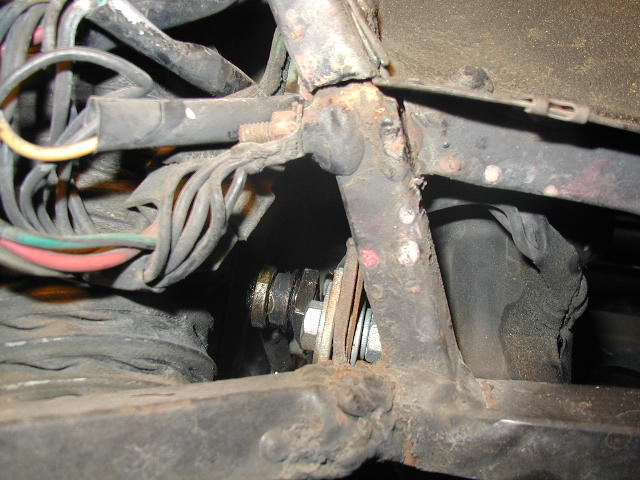

structural damage.  In looking at the spiderweb of welded struts in front of
the RF tire, I found that there were several breaks in the struts.  Picture
attached.  Not sure how I am going to fix that.  Guess I'll disassemble the
front as much as I can and re-weld it in place.

Also found a problem in the back.  The cooling water pipe that runs from the
water pump down the front of the engine and then over to the center of the car
goes right above the fuel balance pipe between the two fuel tanks.  The exhaust
system is right there also, so they installed a heat shield for the fuel
balance pipe.  Lots of stuff there with not much clearance.  The water pipe was
sitting just above the vertical plane of the shield.  Having nothing but the
rubber hoses to support it, the aluminum water pipe was free to bang down
against the sharp edge of the shield.  Don't know if it made any noise, but
there was a definite grove dug in the pipe where it hit.  So I took off the
shield and modified it to give more clearance.  Of course, the shield is a
sandwich of two metal plates with some stuff in between.  Probably asbestos.
So I'll probably die of asbestos poisoning sometime in the next 100 years....

Those of you with 308s might want to check that pipe clearance when you get a
chance.  There is also a potential clearance issue on the top pipe as it passes
by the oil filter.  Mine was contacting one of the nuts for the intake
manifold.  Punched a hole in the pipe.  Had to do emergency repairs in
Victorville CA.  110deg in the shade that day.  Not fun.

Bob
'01 Corvette Z06
'78 308GTS
